Alignsat 1.8m C and Ku band Carbon Fiber Flyaway Antenna / satellite communication antenna

Item No.: FL24
Alignsat 1.8 m carbon fiber manual portable satellite communication antenna is capable of receiving and transmitting C and Ku full band satellite communication signal.
  • Alignsat 1.8m C and Ku band Carbon Fiber Flyaway AntennaDownload
INQUIRY
Description

Description

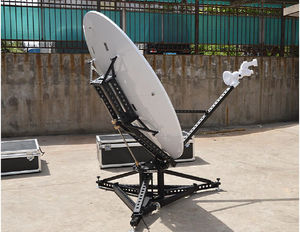

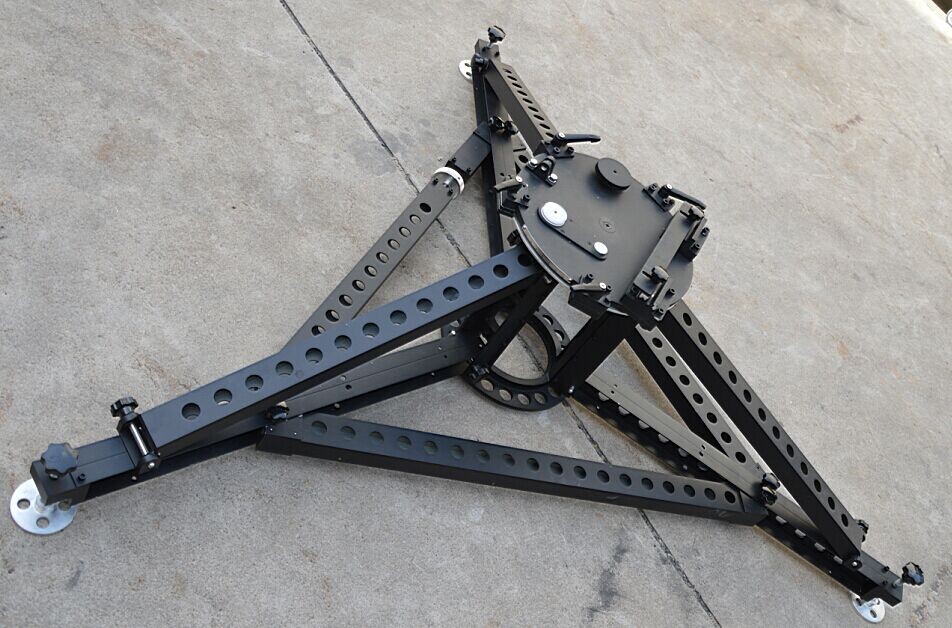

Alignsat 1.8 m carbon fiber manual portable satellite communication antenna is capable of receiving and transmitting C and Ku full band satellite communication signal. The antenna has the advantages of flexible rotation and small movable gap, and can quickly and conveniently capture satellites. The antenna panel is made of carbon fiber and tripod base is made of aluminum alloy, each component adopts positioning locking technology, can easily installed by two persons in 5-10minutes without any auxiliary tools.

Feature
Light weight, small volume, convenient to carry.
Easily complete the installation by two persons in 5-10 minutes.
Flexible Azimuth and Elevation to quickly acquire the satellite.


Technical Specification
  C-Band C-Band Ku-Band
Polarization Linear Circular Linear
Operating Frequency ,GHz Rx Tx Rx Tx Rx Tx
3.4-4.2 5.85-6.725 3.625-4.2 5.85-6.425 12.25-12.75 14.0-14.5
Gain, Mid-band, dBi 35.3 39.1 35.2 39 45.5 46.3
3 dB Beam Width GHz 2.83° 1.71° 2.85° 1.72° 0.87° 0.76°
Cross polarization isolation(On Axis)dB 30 30 15.3 18.3 35 35
Antenna Noise Temperature
10°Elevation
20°Elevation
30°Elevation

38K
26K
21K

38K
26K
21K

57K
47K
42K

VSWR ≤1.25:1
Feed Interface CPR-229 CPR-137G CPR-229 CPR-137G WR-75
Feed Insertion Loss dB ≤0.2
Isolation (Tx to Rx), dB ≥85
Sidelobe dB -14(First sidelobe)
32 - 25 log θ
-14(First sidelobe)
25 - 29 log θ
Mechanical Specification
Reflector material Carbon Fiber
Antenna Type Single Offset, F/D =0.75
RMS ≤0.5mm
Antenna Net Weight 70Kg
Drive Mode Manual
Elevation Travel Range 10°-90°Continuous
Azimuth Travel Range 360°Continuous
Environmental Specification
Wind Operational 20 mph (32 km/h), Gust 34 mph (55 km/h), With ballast or fixed by anchor
Survival 60 mph (97 km/h), With ballast or fixed by anchor
Temperature -30℃~+55 or -40℃~+55℃(specific requirements)
Rain Resistance 1/2 in/h (12 mm/h)
Ice Resistance 1/2 in(12 mm)
Relative Humidity 0 - 100%
Solar Radiation 1000 Kcal/h/m²
